Phasing Out of Client Authentication from Publically Trusted Mutual TLS Certificates

OpenSSL (Linux)

This is by far the easiest method to grab the info from accessible servers. Using the OpenSSL library, we initate a connection to the server and using the s_client argument to get the server’s public certificate.

We then pipe the output into grep to just pull out the EKU and SAN so if I’m checking multiple servers, I know which one this came from.

$ echo | openssl s_client -connect fluidsecurity.co.nz:443 2>/dev/null | openssl x509 -text -noout | grep -A1 "Extended Key Usage\|Subject Alt"

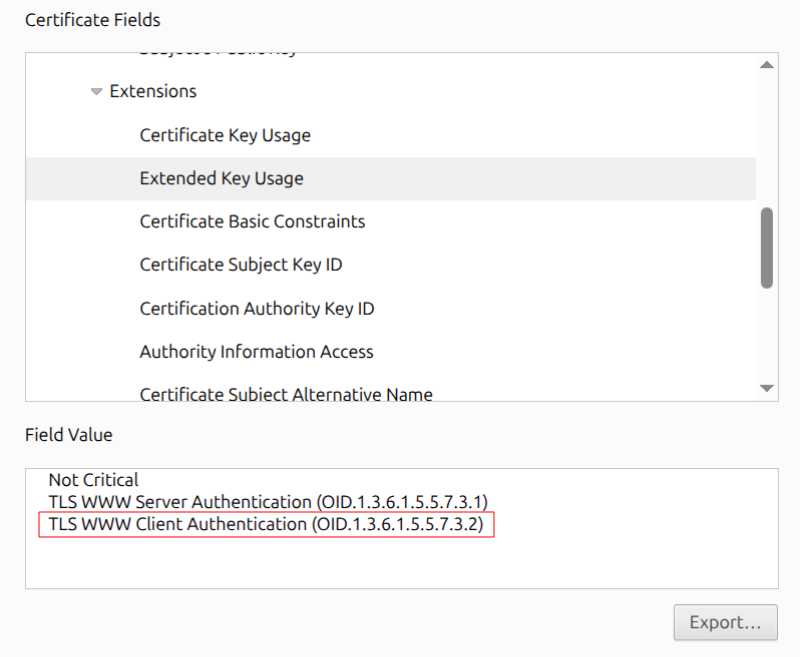

            X509v3 Extended Key Usage:
                TLS Web Server Authentication, TLS Web Client Authentication
            ....
            X509v3 Subject Alternative Name:
                DNS:fluidsecurity.co.nz, DNS:www.fluidsecurity.co.nz

Powershell (Windows)

This method has been designed to be able to again grab the info from accessible servers (rather than internal Windows Certificate stores). I’ve tried to make it parameterised function so you can call it easily for multiple different servers.

param (
    [string]$fqdn='fluidsecurity.co.nz',
    [int]$port=443
)

function check_eku {

    param (
        [string]$fqdn='fluidsecurity.co.nz',
        [int]$port=443
    )

    # Allow connection to sites with an invalid certificate:
    [Net.ServicePointManager]::ServerCertificateValidationCallback = {$true}

    $timeoutMilliseconds = 5000
    $url=https://$fqdn

    Write-Host `n Checking $url -f Green
    $req = [Net.HttpWebRequest]::Create($url)
    $req.Timeout = $timeoutMilliseconds
    try {$req.GetResponse() | Out-Null} catch {}

    if ($req.ServicePoint.Certificate -ne $null) {
        $certinfo = New-Object security.cryptography.x509certificates.x509certificate2($req.ServicePoint.Certificate)
        $certinfo | fl
        $certinfo.Extensions | where {$_.Oid.FriendlyName -like 'enhanced*'} | `
        foreach { $_.Oid.FriendlyName; $_.Format($true) }
    }
}

if (Test-NetConnection -port $port  $fqdn -InformationLevel Quiet) {
    check_ssl -fqdn $fqdn -port $port
} else {
    throw "unable to connect to FQDN '$fqdn' on port $port"
}

Once you’ve loaded the below function into a Powershell session, you can call it again by just calling the following (note you only need to add the port if it is different to 443):

check_eku -fqdn <domain> -port <port>

Python

There may be simpler ways to do this in Python, but I’ve gone for the quickest way I know and have modified an old script from the past.

import ssl
import socket
import sys
from cryptography.x509 import load_der_x509_certificate
from cryptography.x509.oid import NameOID
from cryptography.x509 import ExtensionOID
from cryptography import x509


hostname = sys.argv[1]
port = 443

# Create a socket and wrap it with SSL
context = ssl.create_default_context()
with socket.create_connection((hostname, port)) as sock:
    with context.wrap_socket(sock, server_hostname=hostname) as ssock:
        # Get the certificate in DER format
        cert_der = ssock.getpeercert(binary_form=True)

# Load the certificate
certificate = load_der_x509_certificate(cert_der)

print(f"Certificate details for host: {hostname}")

# Get the Issuer and Subject
issuer_name = certificate.issuer.rfc4514_string()
subject_name = certificate.subject.rfc4514_string()
print(f"Issuer: {issuer_name}")
print(f"Subject: {subject_name}")

# Get DNS Names (SANs)
sans = []
san_extension = certificate.extensions.get_extension_for_oid(x509.ExtensionOID.SUBJECT_ALTERNATIVE_NAME)
if san_extension:
    for x in san_extension.value:
        if isinstance(x, x509.DNSName):
            sans.append(x.value)
print(f"Subject Alternative Names: {sans}")

# Get the Extended Key Usage extension
eku_extension = certificate.extensions.get_extension_for_oid(ExtensionOID.EXTENDED_KEY_USAGE)

# Extract the OIDs from the EKU extension
eku_oids = [usage.dotted_string for usage in eku_extension.value]

# Print the OIDs
print(f"Extended Key Usage OIDs: {eku_oids}")

# For better readability, you can map OIDs to common names
oid_map = {
    '1.3.6.1.5.5.7.3.1': 'Server Authentication',
    '1.3.6.1.5.5.7.3.2': 'Client Authentication',
    '1.3.6.1.5.5.7.3.8': 'Time Stamping',
    '1.3.6.1.5.5.7.3.9': 'OCSP Signing'
}

readable_eku = [oid_map.get(oid, oid) for oid in eku_oids]
print(f"Readable EKU: {readable_eku}")

Running the above gives the following:

$ python3 check_eku.py fluidsecurity.co.nz
Certificate details for host: fluidsecurity.co.nz
Issuer: CN=R13,O=Let's Encrypt,C=US
Subject: CN=fluidsecurity.co.nz
Subject Alternative Names: ['fluidsecurity.co.nz', 'www.fluidsecurity.co.nz']
Extended Key Usage OIDs: ['1.3.6.1.5.5.7.3.1', '1.3.6.1.5.5.7.3.2']
Readable EKU: ['Server Authentication', 'Client Authentication']

Java Key Store (JKS)

For those systems that you identify are running Java, and may have mTLS connections setup to integrate to other systems. You will need access to the Java Key Store (files with extension .jks) and the corresponding password. Using the Java keytool command, we can list all of the certs within the key store, find the one that we want more details on and export this using its alias so we can print all the corresponding info, including the EKU.

# List the certs in the Java Key Store (you will be prompted for the keystore password)
keytool -list -v -keystore example.jks

# Export the cert you want more details on into a file
keytool -exportcert -alias client -keystore example.jks -file client.cer

# Print the details of the cert
keytool -printcert -file client.cer

Running the above will show all the details including if it has EKUs set as in the example below:

....
#6: ObjectId: 2.5.29.37 Criticality=false
ExtendedKeyUsages [
  clientAuth
  serverAuth
]
....
